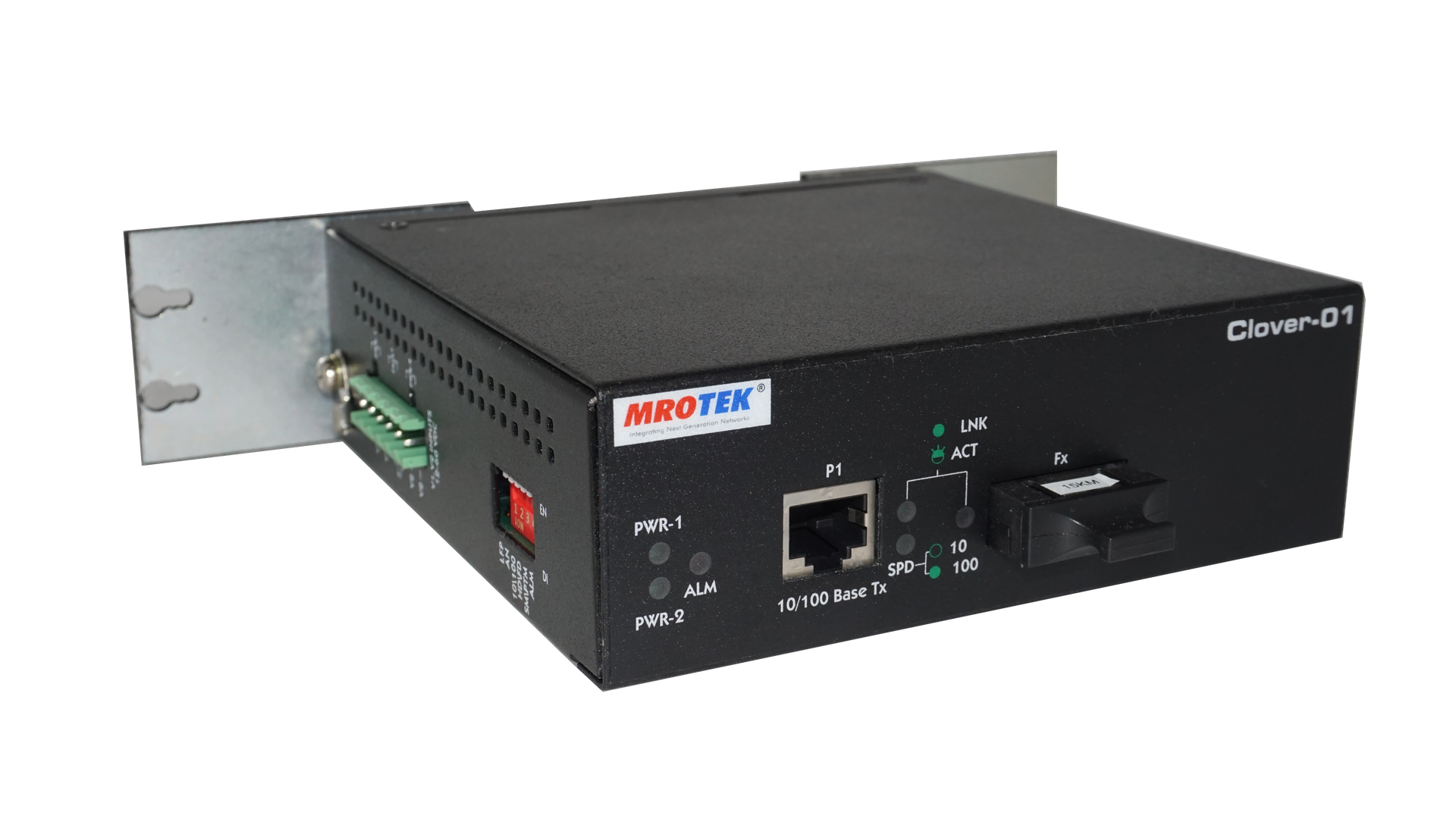

CLOVER-01/SM15/SC

enquiry
1-10/100 BaseT & 1 – 100Base-X, SC, DC12-48V 15KM
Specifications
Interface
  • Copper 10/100 Base-T Ethernet Interfaces – Rj45
  • Fiber 100B-FX Fiber SC or SFP Connector
  • DIP switch – 6 Pole
  • Alarm Dry Relay Contact
Power
  • Dual DC Power supply (redundancy) supporting 12V-60 V DC
                                                            OR
  • External AC-DC power supply with AC (100V-240V)
    @50-60Hz Input & DC output of 48V/24V
Diagnostic LED
  • Power LED : PWR-1, PWR-2 (Green)
  • Alarm LED : Alarm Indication (Red)
  • FX-LNK (Green) & FX-ACT (Green) for Fiber Port.
  • SPD : 100BaseT/ 10BaseT-LNK/ACT (Green) (only for Copper port)
Environment
  • Operating Temperature :  -40~85°C
  • Operating Humidity :  5%~95%,(non-condensing)
  • Storage Temperature :  -40~85°C
  • Storage Humidity :  5%~95%, (non-condensing)

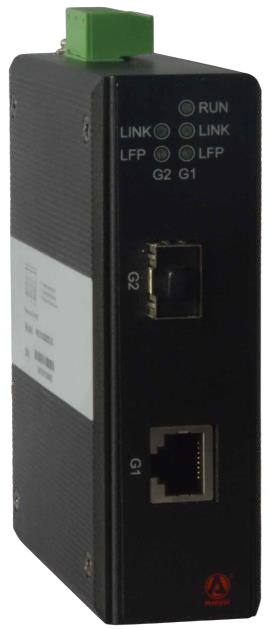

CLOVER-01G/SC/SM20

enquiry
1-10/100/1000BaseT & 1 – 1000Base-X, SC, DC12-48V 20KM
Specifications
Interface
  • Supports 1-10/100/1000 Base-T and 1 –1000 Base -X SFP ports
Fiber
  • Multi-mode fiber: 1310nm, 2Km
  • Single mode fiber: 1310nm, 20/40/60Km
    1550nm,20/40/60/80/100 Kms
Standards
  • IEEE802.3, IEEE802.3u, IEEE802.3z;
    Flow control - IEEE802.3x, Back Pressure Control
Power
  • 48VDC ( 12V – 48V) Environment
    Max. Consumption < 3 Watts, PoE/PoE+- 30 watts
Environment
  • Operating temp :  -20 to 75 degree.
  • Storage temp :  -40 to 85 degree.
  • Humidity : 10 to 95% (Non condensing)
support
  • DIN Rail Installation
  • Supports LFP
