HOSTA-UG

Media Converter

Overview

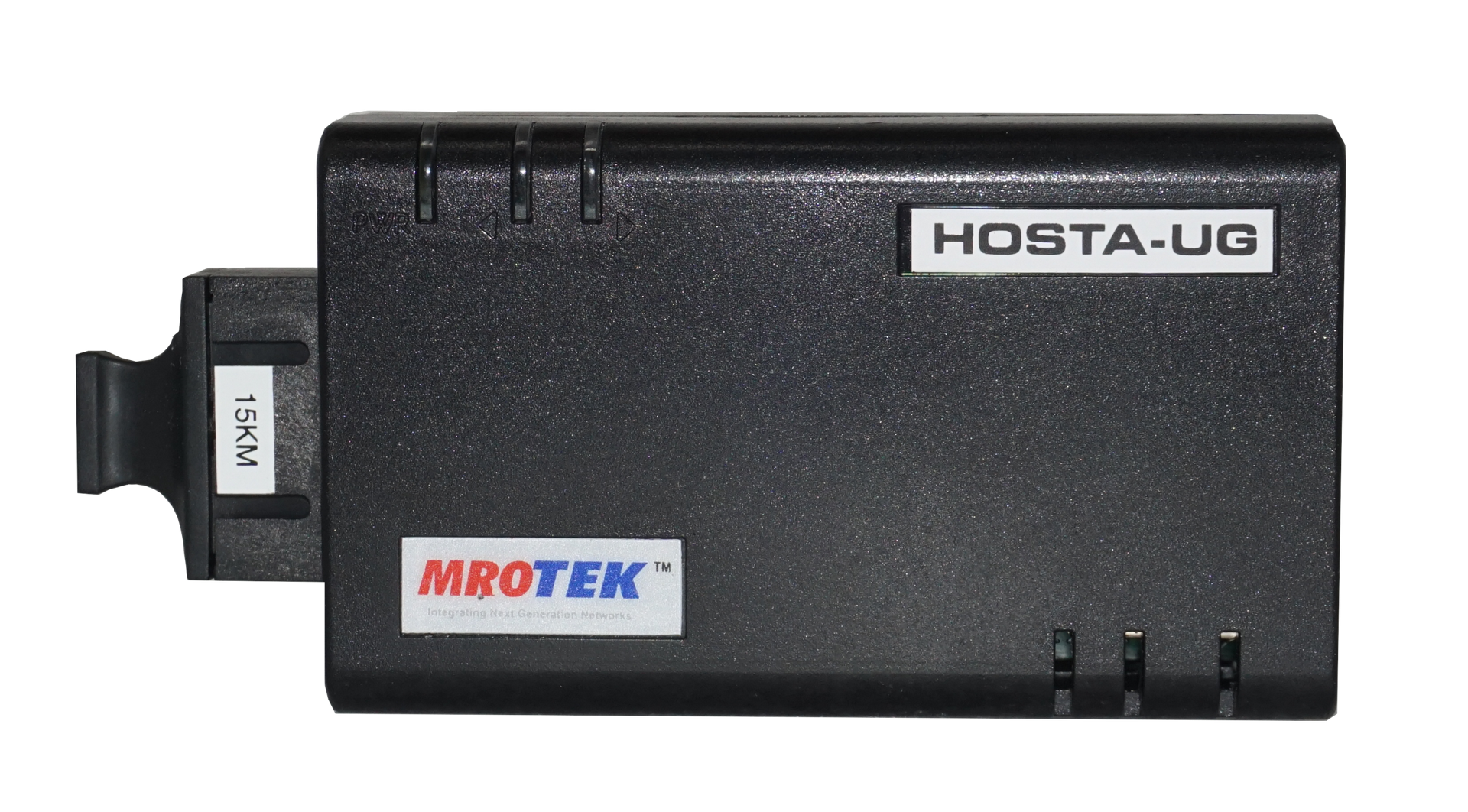

HOSTA-UG is a Gigabit Ethernet media converter with triple speed 10/100/1000 Base-T to fiber converter. Optical transmission distance can be up to 100 Kms.
HOSTA-UG-D is a Dual Unmanaged Triple Speed Gigabit Media converter, offering versatile connectivity and support for 10/100/1000 Mbps electrical to 1000 Mbps optical interface supporting AC/DC power supply. It is available with a versatile range of Fiber Optic interfaces.
HOSTA-UG-CAD is a compact and low-cost Triple-speed Gigabit Media converter which provides media conversion from 10/100/ 1000 Base-T to 1000 Base-X on multimode or single mode fiber ranging from 500 mtrs to 70 kms . It is available with a versatile range of Fiber Optic interfaces. HOSTA-UG(V3) Enterprises for wide range of deployments.

HOSTA-UG-R

enquiry

OAK-13 Triple speed Line card with SM15 and supporting dual channel.

Specifications

Physical features

Wavelength (nm) :1310
Fiber Type (mm) : 9/125 Single mode
Typical TX Power (dBm) -12
Typical RxSensitivity -28
Typical Range (Km) 20 (dBm)

Environment

Operating Temperature : -10°C ~ 50°C
Humidity : 5%~95 % (no condensation)
Product Size: 140 X110 X30mm(WXDXH)

Power

Power supply: AC(230V)；
Power consumption: ≤10W

HOSTA-UG-D

enquiry

Dual Channel Gigabit Ethernet Media converter module with SC connectors with AC power builtin.

Specifications

Interface

1000Base-T port : 2 nos RJ-45, Full Duplex support, Auto MDI-I / MDI-X, Supports jumbo frame.
1000Base-X port : 2 nos SC Connector

DIP Switch

Enable / Disable of (Tx1/Fx1):
LFP, Auto-Negotiation, Speed-100/10Mbps and Jumbo frames.
Enable / Disable of (Tx2/Fx2):
LFP, Auto-Negotiation, Speed-100/10Mbp,
Jumbo frames, Dual mode/Redundancy-12.

Standard Compliance

IEEE 802.3ab, IEEE 802.3z, 10/100/1000 Base-T, 1000 Base-X.

Environment

Operating Temperature : 0°– 50°C
Humidity : 10% to 90%, non-condensing
Product Size: 190 x 44 x 132 mm

LED Indicators

PWR (Green) : Power status
MOD (Red) : Dual Mode / Redundancy
Fx1, Fx2 ports :
Green + blinking : Link/Activity of fiber port
Dual (Geen/(Red) : Copper LFP / FEF

Power

AC input 90V ~ 260V
Power consumption: 4.5W (typical)
DC input : -36V ~ -60V

ordering option

HOSTA-UG-D/SM15/SC/AC

Dual Channel Gigabit Ethernet Media converter module with SC connectors SM15KM with AC power builtin.

HOSTA-UG/SC/SM20/AC

Gigabit Ethernet media converter with 10/100/1000 base-T to Optical converter SM 20 KM AC power supply

HOSTA-UG/CAD

enquiry

Single channel Stand- alone 10/100/1000Base-T to 1000Base-Fx media converter with External AC Adaptor

Specifications

Standards & Protocols

IEEE 802.3ab, IEEE 802.3z, 10/100/1000Base-T, 1000Base-X
IEEE802.3 10BaseT, IEEE802.3u 100BaseT, Tx/Rx FastEthernet

1000Base-T port

RJ-45
Sensor : Full Duplex support, Auto Sensed
Auto MDI-I / MDI-X
Supports upto 10K jumbo frame @1000 Base-T
1000 Base-X port SC Connector

LED Indicators

PWR (RED) : Power status
Fx (Green + blinking) : Link/Activity of fiber port
Cu (Green + blinking) : Link/Activity of copper port

DIP Switch,dimensions

Dipswitch -Enable / Disable : LFP
Dimensions (WxDxH) : 50 x 79 x 25 mm
Weight : 170 gm (with Adapter)

Power

AC-DC Adaptor 9V / 0.5 A
Power consumption : 4W (typical)

Environment

Operating Temperature : 0°– 55°C
Humidity : 10% to 90%, non-condensing

ordering option

HOSTA-UG/CAD/SM15/SC

Single channel Stand- alone 10/100/1000 Base-T to 1000 Base-Fx
media converter with External AC Adaptor SM15KM

HOSTA-UG/CAD/MM/SC

Single channel Stand- alone 10/100/1000 Base-T to 1000 Base-Fx
media converter with External AC Adaptor MM
