Multi Service Access

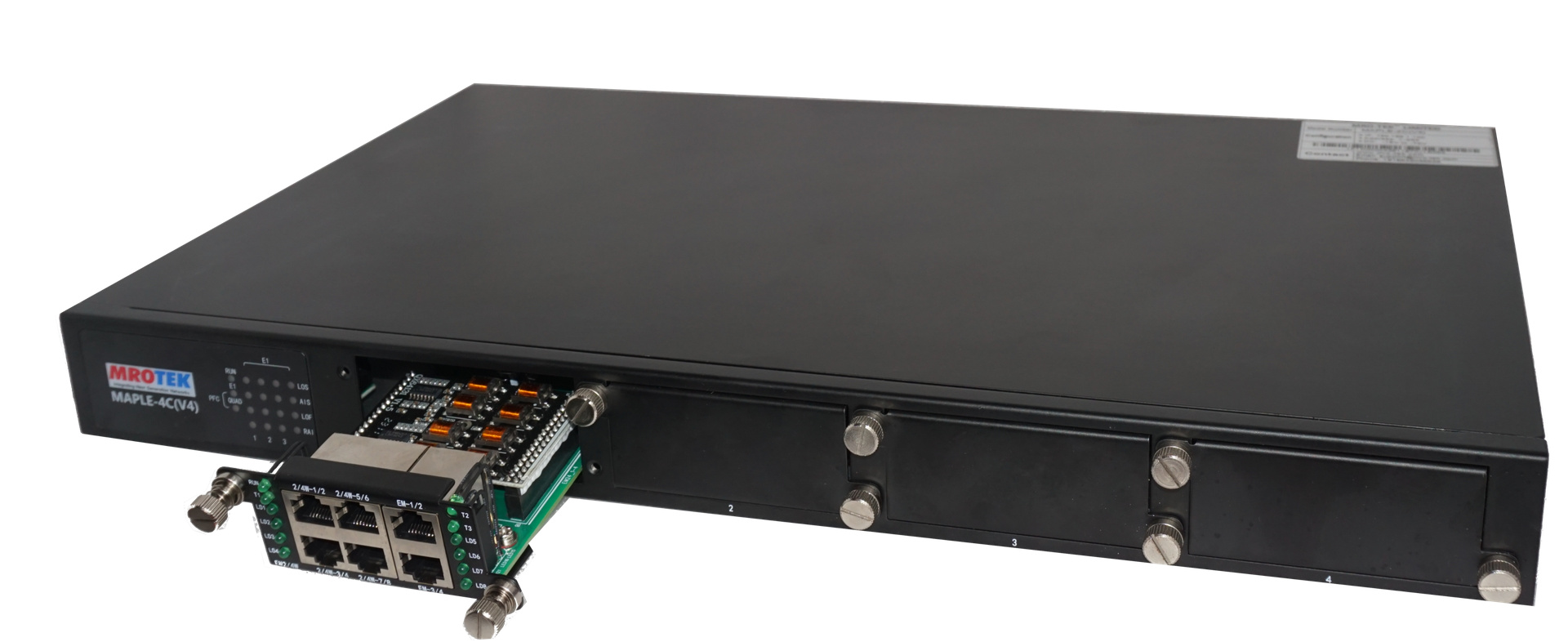

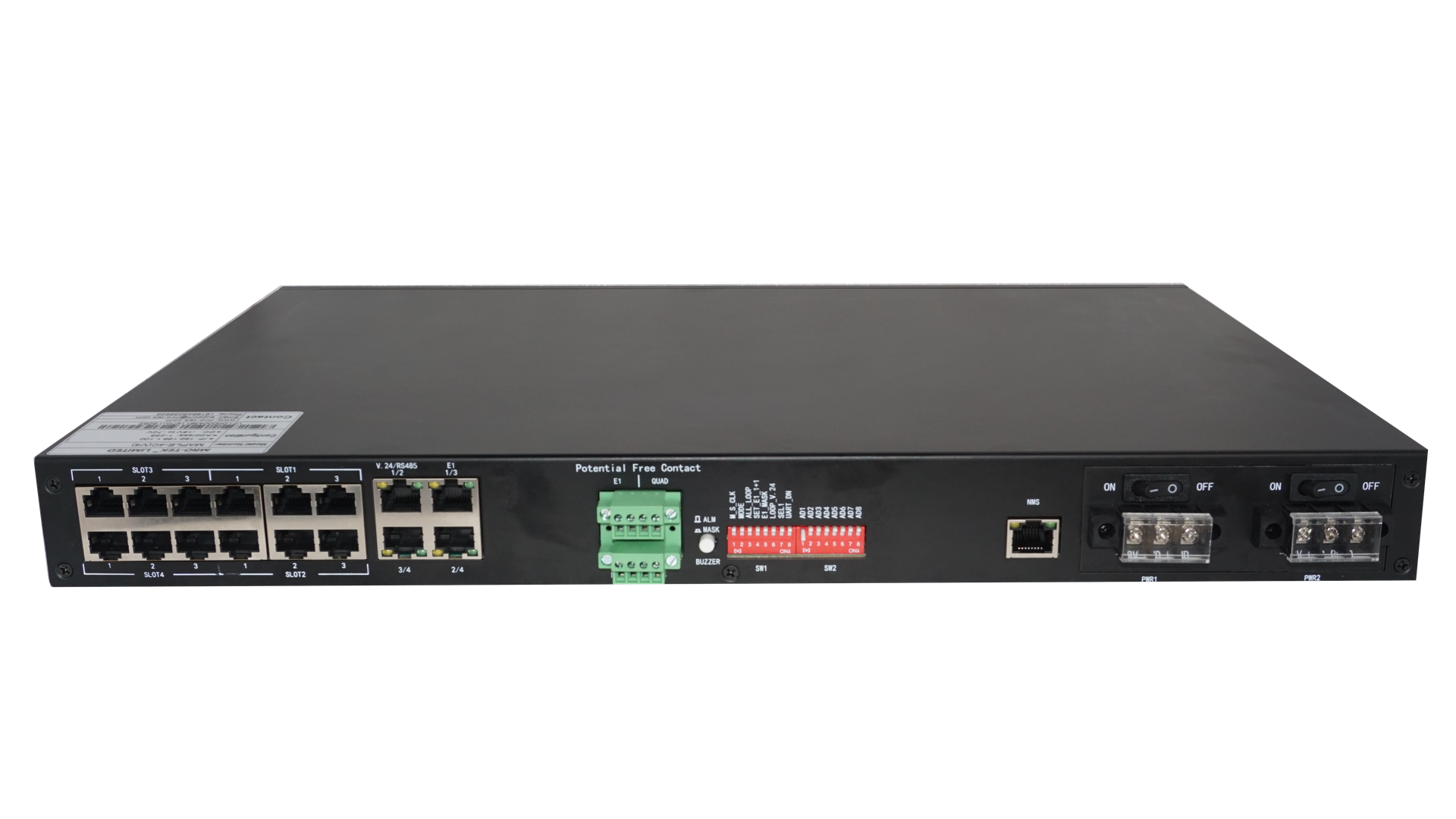

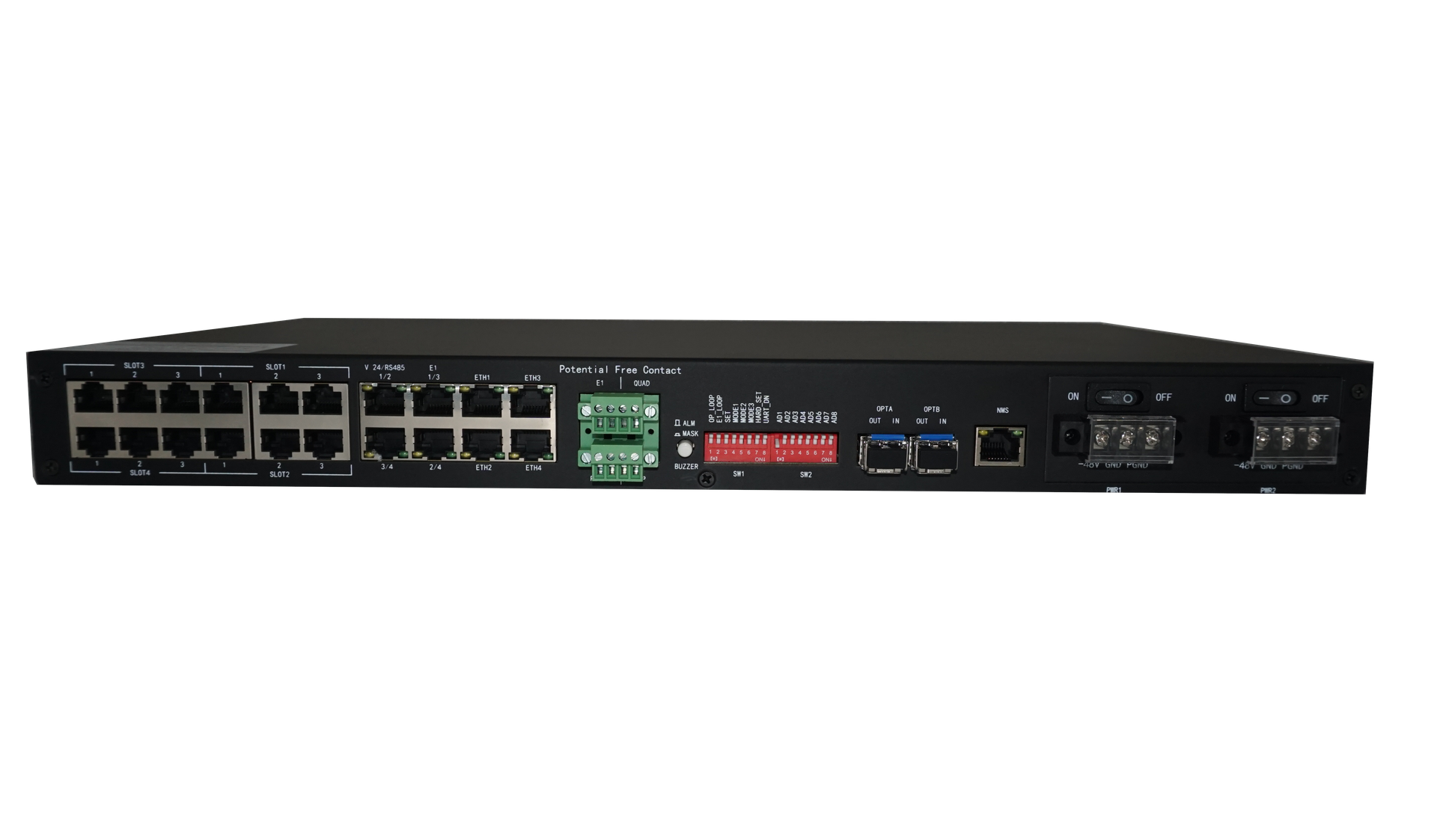

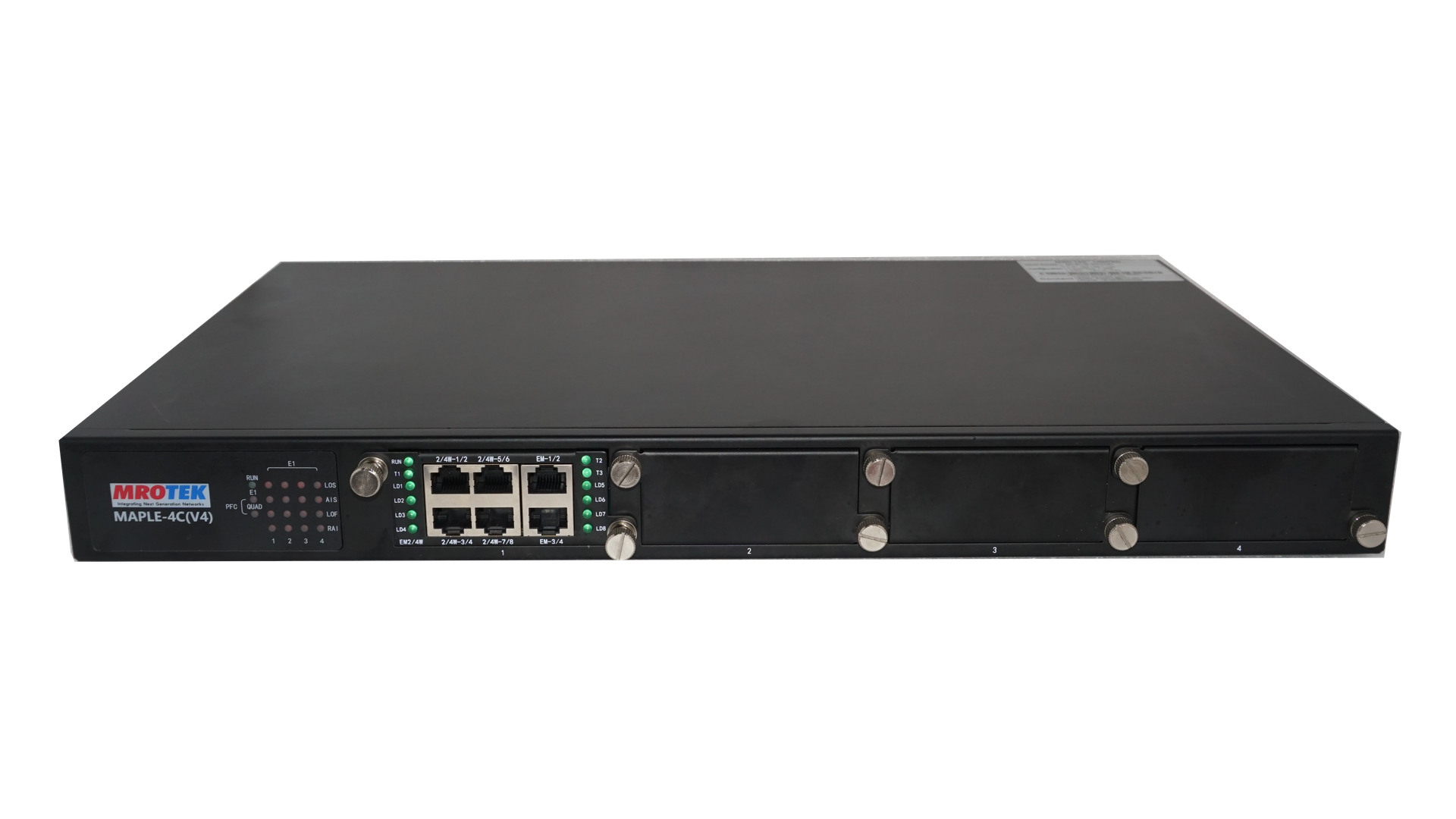

MAPLE-4C Overview
Switch with management are designed to meet Industrial applications, where environmental conditions exceed commercial product specifications. Gigabit Managed Switches provides a reliable infrastructure for your industrial automation applications supports 802.3af/at Power over Ethernet(PoE).
MAPLE-4C is a PCM multiplexer which achieves basically transferring FXS, FXO, V.24, RS485, EM2/4W and audio2/4W through E1 uplink paths supporting E1 uplink paths 1+1 protection and QUAD path protection is optional.

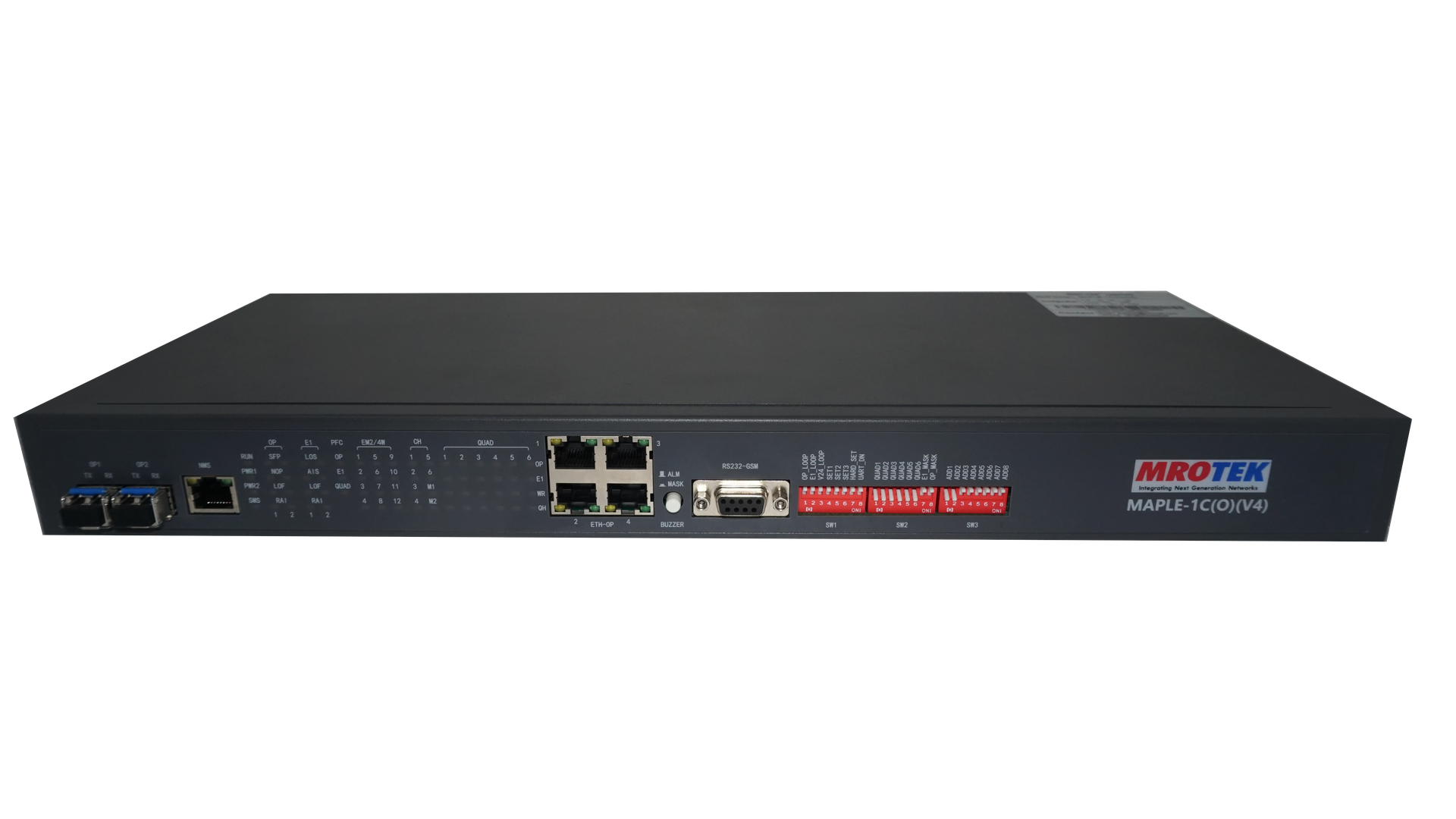

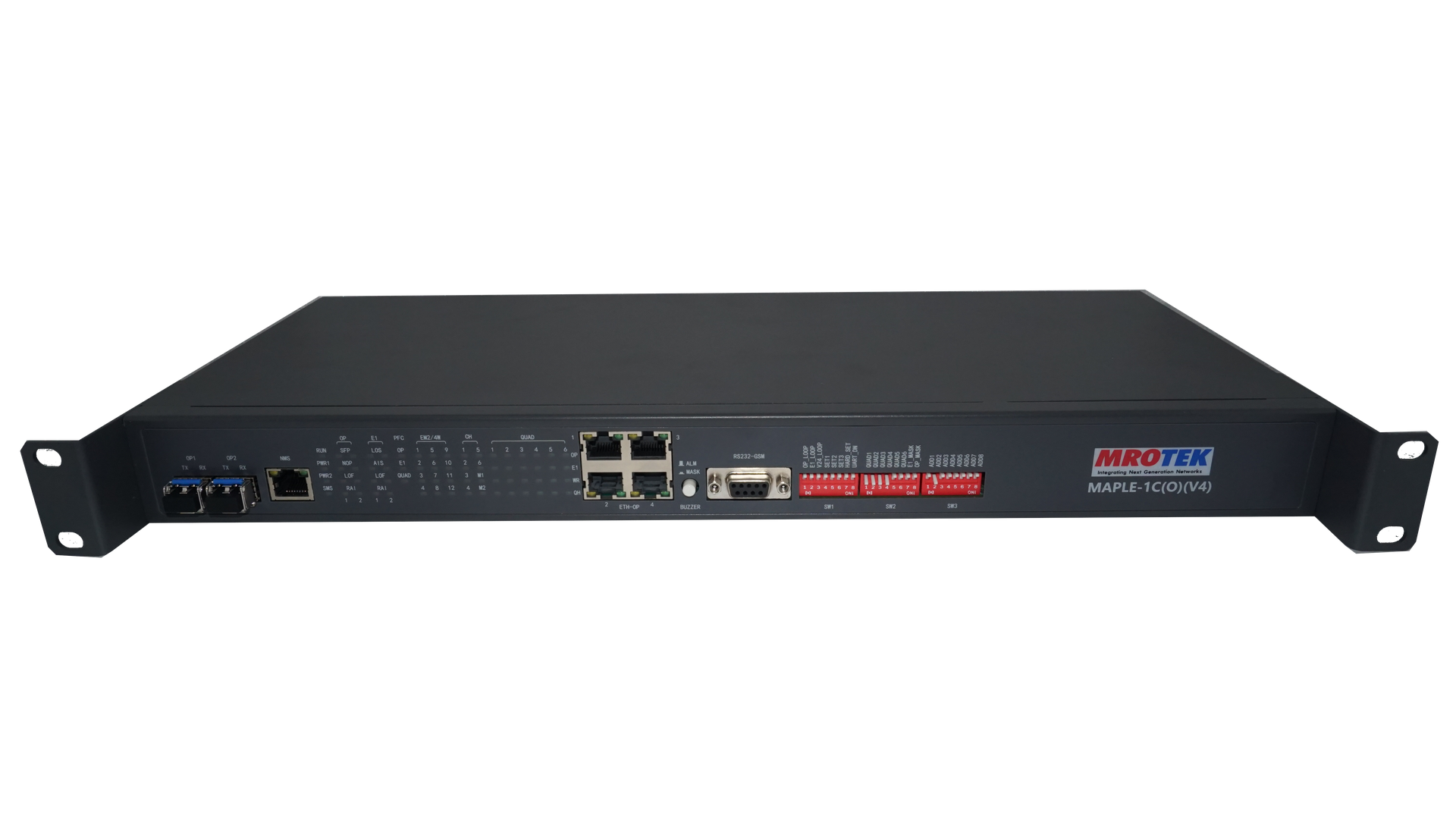

MAPLE-1C(O) Overview
MAPLE-1C(O)(V4) is a Managed, integrated Access TDM multiplexer which integrates multiple voice over multiple main (network) links. It can provide 2*E1, 2*Fiber capacity for accessing and transmission.
1U high Chassis designed for applications ranging from small campus networks to multi-site corporate networks or extensive carrier access solutions.
The equipment confirms to international standards, ensuring compatibility in Multi-vendor environments World wide.

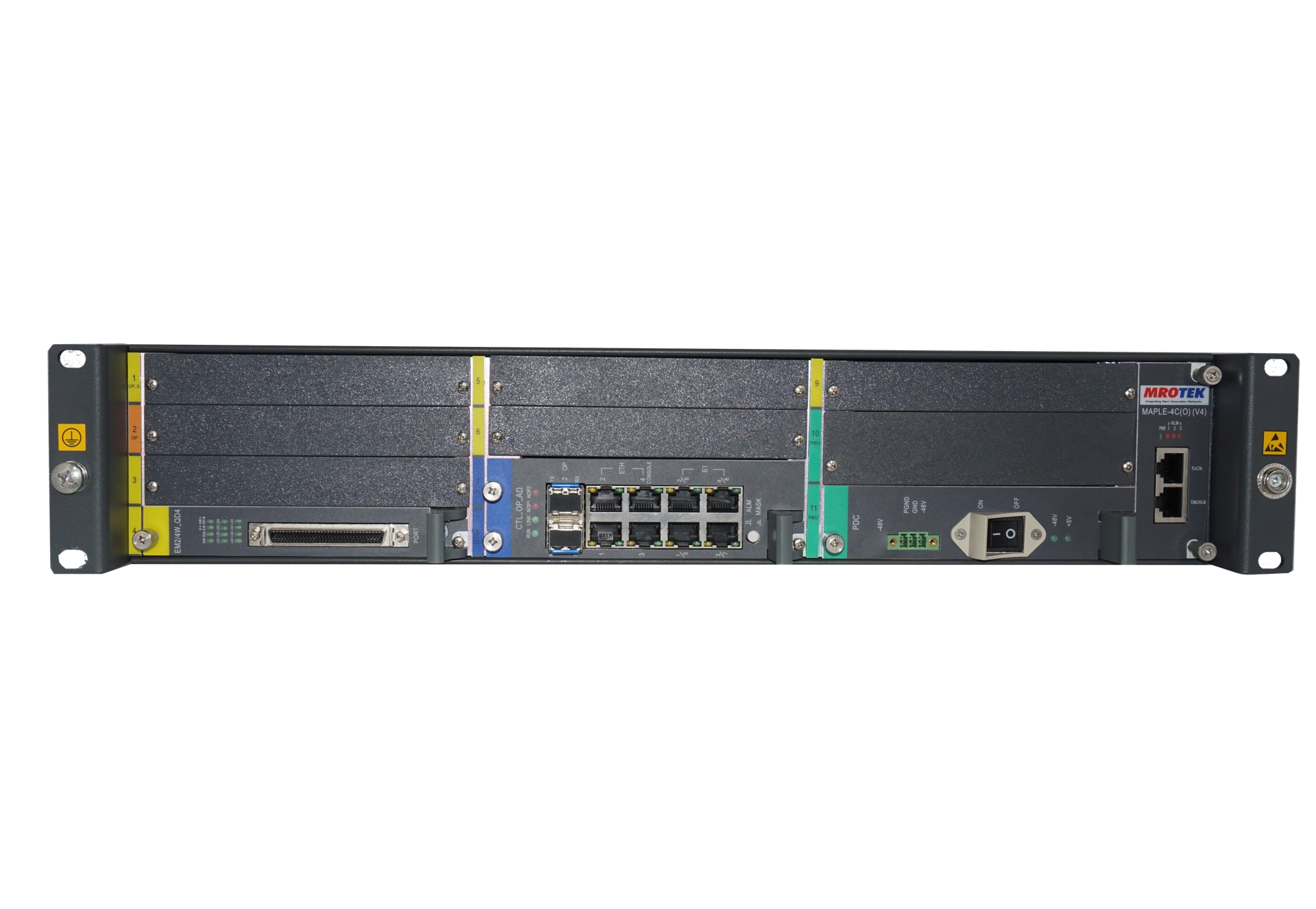

MAPLE-4C(O) is a Managed, modular integrated Access TDM multiplexer which integrates multiple dedicated data, voice and LAN channels over multiple main (network) links. It can provide Maximum 8E1 capacity for accessing and transmission with cross-connect capacity is 2048×2048 64K.
It provides full range of voice and digital data services to subscribers located at different locations require interconnecting and establishing a voice and data network over E1 link. The flexible, 2U high, 19-inch, 7-slot modular Chassis with a wide choice of I/O (user interface) modules is designed for applications ranging from small campus networks to multi-site corporate networks or extensive carrier access solutions.

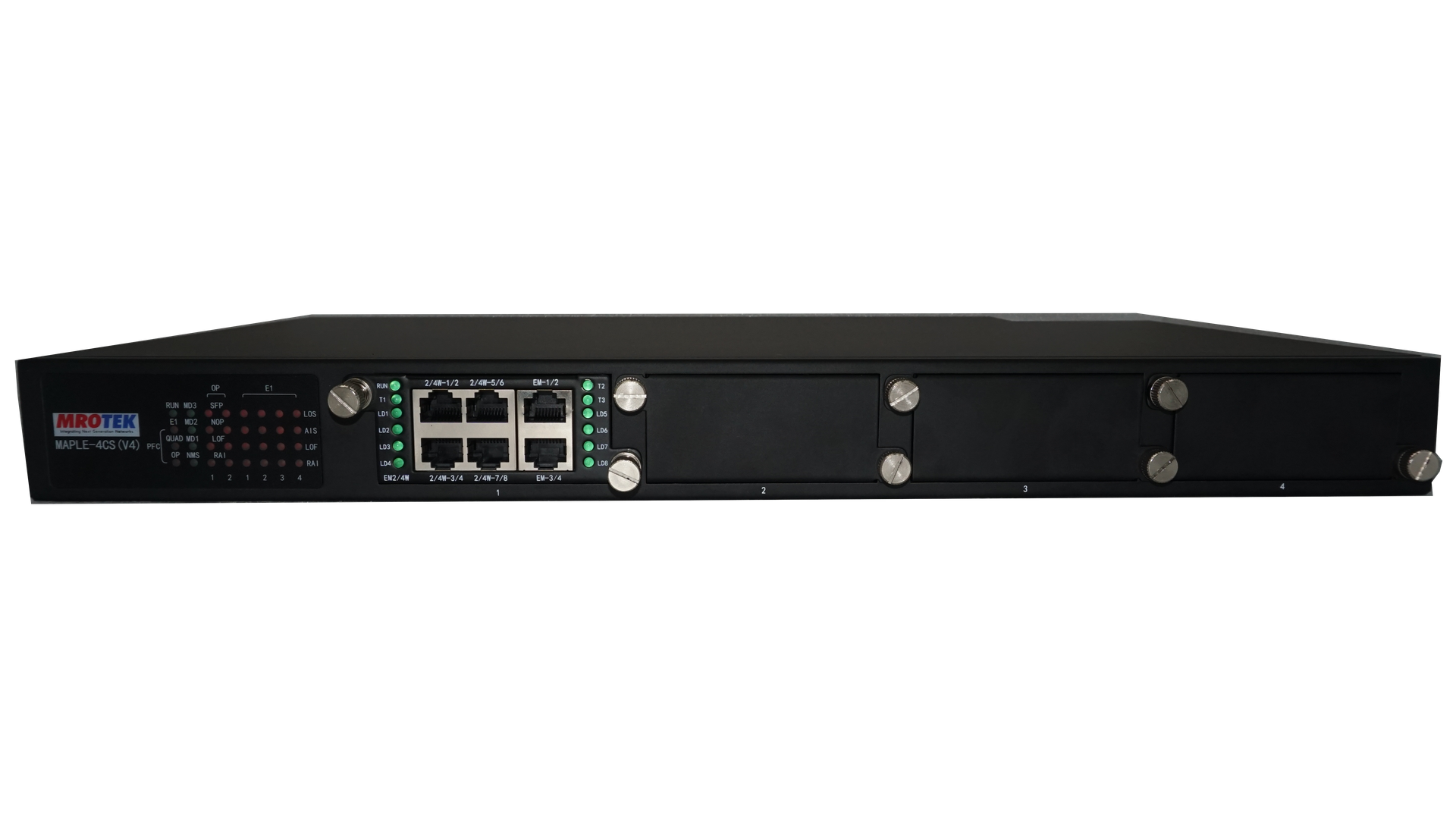

MAPLE-4Cs Overview
MAPLE-4CS is a compact and cost-effective Managed multi-service multiplexer with 256 time-slot cross connect ability, with one slot for uplink card including 4E1/8E1 and PDH fiber interface and 3 slots for downlink cards including FXO, FXS, E&M, RS232 and fractional Ethernet/V.35 to E1. The 1+1 port protection of 8E1 uplink card makes sure all services work continuously when one link breaks down.
MAPLE-4CS integrates multiple dedicated data, voice and LAN channels over multiple main (network) links.
MAPLE-4CS can be deployed either in point-to-point topology or point-to-multipoint topology. It can be managed via local CLI or Telnet/SNMP and also through a centralized GUI based Lite view NMS.
